Sony Ecm M1 Shotgun Mic product imageNew condition

Cameras

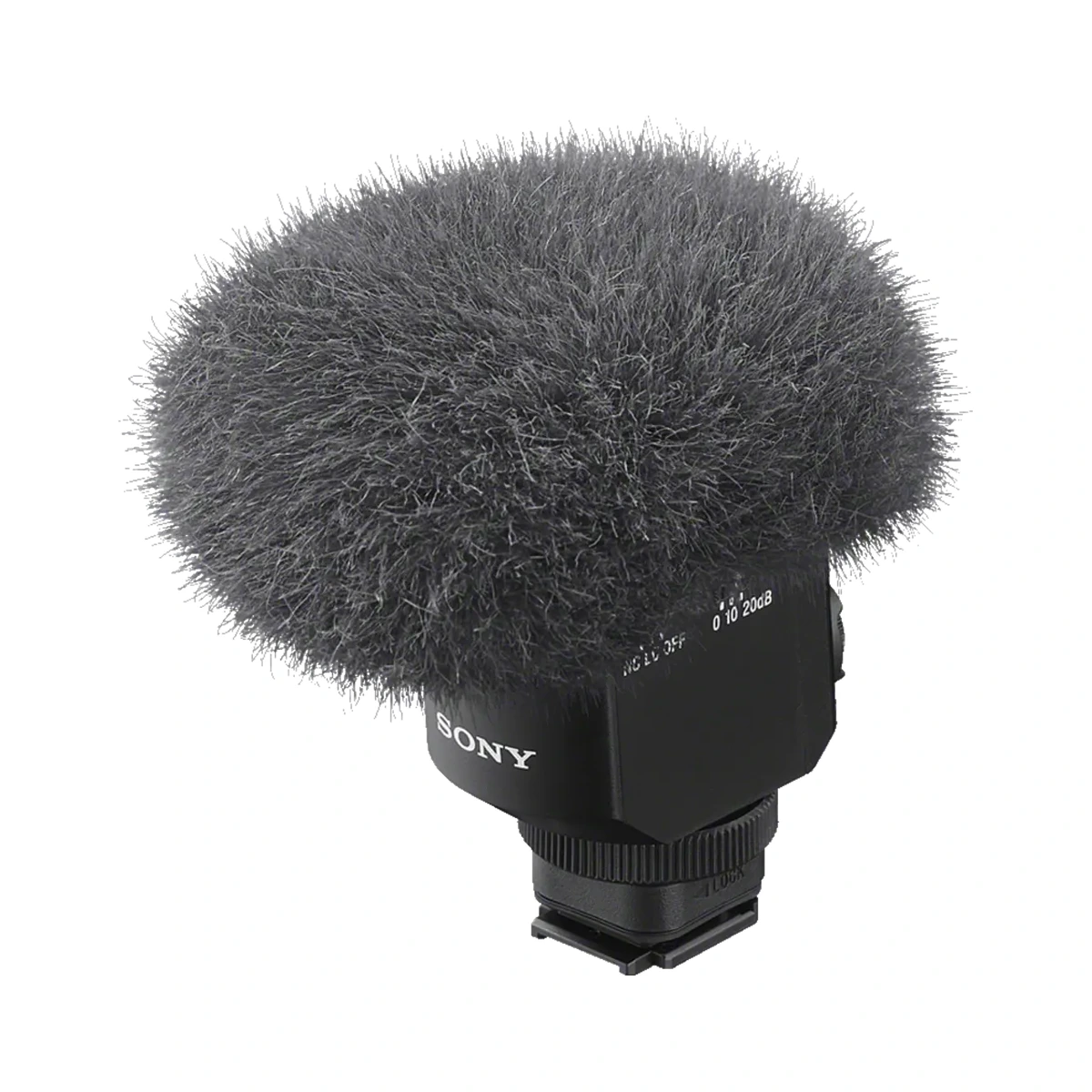

Sony Ecm M1 Shotgun Mic

Sony · Sony ECM-M1 Digital Shotgun Microphone

Sony ECM-M1 compact digital shotgun microphone featuring 4-capsule beamforming technology, 8 dial-selectable pickup patterns (including Ultra-directional and Stereo), cable-free MI Shoe digital interface, and 4-channel backup recording.

Compare now

Price unavailable

Price range updating

No verified price is available yet. Store offers will appear when merchants publish them.

Buying options
  • Brand: Sony
  • Model: ECM-M1
  • Weight: Approx. 65 g (main unit only)
  • Interface: Sony Multi Interface (MI) Shoe (Digital / Analog switchable, battery-free, cable-free)

Compare store prices

Buying options

0 live offers

No live offers for this variant

Offers will appear when merchants publish them.

Observed price history

Loading history…

Product story

Details worth knowing

Sony ECM-M1: 4-Capsule Beamforming & 8 Dial-Selectable Polar Pickup Patterns

The Sony ECM-M1 is an ultra-compact digital shotgun microphone (40 × 72.2 × 64.4 mm, weighing just 65 g without its fur wind screen) engineered for Sony Alpha mirrorless and Cinema Line creators in Bangladesh. Using four matched electret condenser capsules and advanced digital beamforming signal processing, the ECM-M1 is the world's first shotgun microphone to provide eight dial-selectable audio pickup modes from a mechanical rear rotary dial: Super-directional (Front), Unidirectional (Front), Omnidirectional, Super-directional (Rear) (ideal for behind-the-camera narration), Super-directional (Front + Rear) (interviews), Super-directional (Front / Rear Separate) (isolated dual tracks), Stereo, and Ultra-directional (tight front target focus).

Cable-Free Multi Interface (MI) Shoe Digital Audio, 4-Channel Backup & Digital Filters

Sliding directly into the Multi Interface (MI) Shoe on compatible Sony cameras, the ECM-M1 operates completely free of external batteries and 3.5mm audio cables—drawing power directly from the camera body while transmitting pure digital audio with zero analog cable hum or AD-conversion noise (when switched to DIGITAL mode; an ANALOG switch position is also provided for legacy MI Shoe bodies). On compatible cameras supporting 4-channel audio, the microphone simultaneously records omnidirectional ambient audio on Channel 3 and a -20 dB attenuated safety track on Channel 4 to prevent clipping during sudden loud sounds. Side-panel switches control a digital Noise Cut (NC) filter, a Low Cut (LC) wind/vibration filter, and a 0 / 10 / 20 dB attenuator.

Bangladesh Buyer Checklist

  • Sony Multi Interface (MI) Shoe Requirement: Designed exclusively for Sony cameras equipped with a Multi Interface (MI) Shoe; verify whether your Sony Alpha/ZV/FX camera body supports the Digital Audio Interface (required for 4-channel backup recording) or standard Analog MI Shoe mode.
  • Included Accessories: Ships with a detachable fur wind screen for outdoor shooting in windy conditions, a connector protect cap, and a drawstring carrying pouch.
  • Catalog & Reference Links: Browse more camera lenses and audio accessories in the BiponiBD catalog or review the official Sony ECM-M1 specifications.

Features

  • 4-capsule electret condenser array with digital beamforming and 8 dial-selectable pickup patterns
  • Includes Ultra-directional, Super-directional (Front/Rear/Combined/Separate), Unidirectional, Omni, and Stereo modes
  • Cable-free and battery-free operation via Sony Multi Interface (MI) Shoe with Digital/Analog audio switch
  • 4-channel safety backup recording (Ch 3 omnidirectional + Ch 4 -20dB safety track on compatible Sony cameras)
  • Digital Noise Cut (NC) filter, Low Cut (LC) filter, 0/10/20dB attenuator, shock-absorbing mount, and fur wind screen

Pros

  • Eight physical dial-selectable pickup patterns replace multiple specialized microphones in a 65g body
  • Cable-free and battery-free MI Shoe connection eliminates dangling 3.5mm cables that block flip screens
  • Built-in 4-channel safety recording captures an omnidirectional backup track and a -20dB pad track simultaneously
  • On-board digital Noise Cut filter removes constant background AC hum at the source

Cons

  • Works exclusively on Sony cameras equipped with a Multi Interface (MI) Shoe (no 3.5mm jack or cold-shoe adapter)
  • 4-channel backup recording requires a Sony camera body that supports 4ch digital MI Shoe audio
  • Does not have a 3.5mm headphone monitoring jack on the microphone body itself

Helpful answers

Frequently asked questions

Product-specific answers maintained with the catalog information.

What are the 8 pickup patterns on the Sony ECM-M1 shotgun microphone?

The rear dial selects between Super-directional (Front), Unidirectional, Omnidirectional, Super-directional (Rear), Super-directional (Front + Rear), Super-directional (Front / Rear Separate), Stereo, and Ultra-directional.

Does the Sony ECM-M1 require batteries or an audio cable?

No. It draws power and transmits digital or analog audio directly through the camera’s Sony Multi Interface (MI) Shoe without any batteries or cables.

Can the Sony ECM-M1 be used on non-Sony cameras?

No. The ECM-M1 relies exclusively on the proprietary multi-pin Sony Multi Interface (MI) Shoe for both power and signal transfer.

How does the 4-channel backup recording work on the Sony ECM-M1?

On compatible Sony cameras with a Digital Audio MI Shoe, Channels 1 and 2 record your selected dial pattern, while Channel 3 records an omnidirectional backup and Channel 4 records an omnidirectional backup at -20dB.
